What Is PLC Programming: Beginner’s Guide in 2026

PLC programming is how we instruct industrial controllers to automate machines and processes.

If you have ever wondered what is PLC Programming, you are in the right place. I have spent years building, testing, and fixing control systems on factory floors. In this guide, I will break down what is PLC Programming in plain language, show real examples, and share hard-won tips you can use today.

Source: controleng.com

What Is PLC Programming?

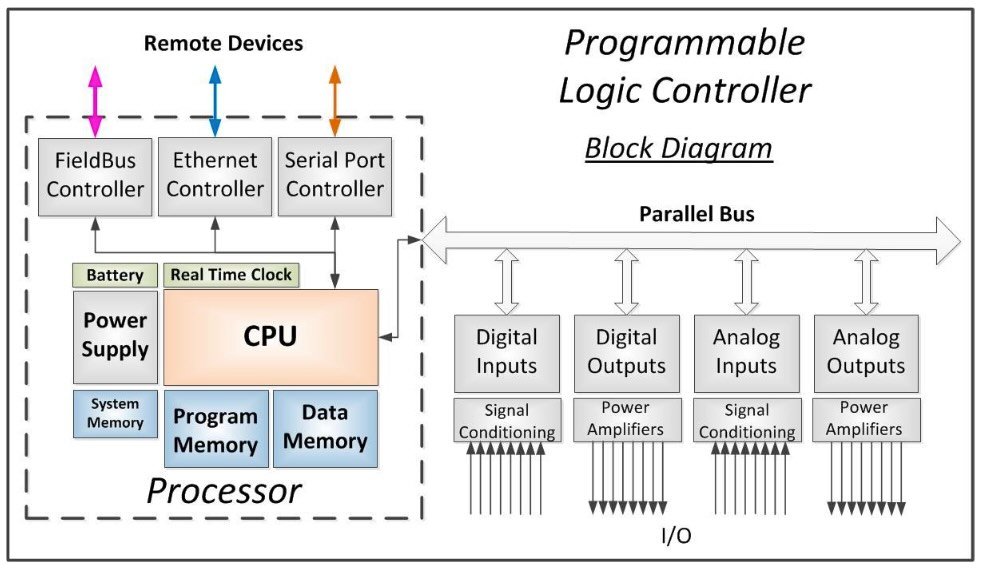

What is PLC Programming? It is the process of writing logic that runs on a Programmable Logic Controller. A PLC reads inputs from sensors, runs your logic, and then drives outputs that move motors, open valves, and control machines. Think of a PLC as a rugged, real-time brain built for industry.

A PLC is not a desktop PC. It is made for harsh sites, fast control loops, and nonstop uptime. The code is built with IEC 61131-3 languages like ladder diagram, function blocks, and structured text. These languages map well to how machines work and how electricians think.

When I teach new techs what is PLC Programming, I compare it to stage cues in a play. Sensors speak. The PLC listens. Your logic sets the scene. Then actuators act. This tight loop repeats every few milliseconds.

Source: youtube.com

How a PLC Works: The Scan Cycle

A PLC runs a loop called the scan cycle.

• Read inputs. The CPU samples digital and analog signals.
• Execute logic. It runs your code top to bottom or by tasks.
• Update outputs. It writes results to relays, drives, and valves.
• Housekeeping. It handles comms, diagnostics, and timing.

This cycle is fast and steady. Typical scan time is 1 to 20 ms. That steady pace is why motion, safety interlocks, and alarms feel instant.

Personal note: I once chased a jitter issue on a filler line. Long rungs bogged the scan. We split logic into tasks and trimmed heavy math. Scan time dropped from 28 ms to 8 ms. The filler stopped spilling. That is the craft of what is PLC Programming.

Source: unitronicsplc.com

Core Building Blocks of PLC Logic

To master what is PLC Programming, know the parts you will use every day.

• Inputs and outputs. Digital points (on or off). Analog points (ranges like 4–20 mA).
• Tags and data blocks. Named variables store states, counts, and setpoints.
• Timers and counters. On-delay, off-delay, pulse timers. Up and down counters.
• Tasks, programs, and routines. Organize logic by machine area or function.
• Networking. EtherNet/IP, PROFINET, Modbus TCP, and fieldbuses tie devices together.
• HMI and SCADA. Screens let people view data and control systems.
• Motion and drives. VFDs and servos sync with the PLC for speed and position.

Good design keeps these parts clear and simple. Clear tags, clean rungs, and safe defaults save hours when trouble hits.

Source: cadcamguru.com

PLC Programming Languages Under IEC 61131-3

Most platforms support these common languages:

• Ladder Diagram (LD). Looks like relay logic. Great for interlocks and simple steps.
• Function Block Diagram (FBD). Blocks wire together. Great for PIDs and signal flow.
• Structured Text (ST). Code-like. Great for math, arrays, and complex logic.
• Sequential Function Chart (SFC). Steps and transitions. Great for batch and states.
• Instruction List (IL). Now legacy. Rare in new systems.

When to use what:

• Use ladder for clear on/off control and quick troubleshooting.
• Use function blocks for reusable logic like motor starts or PIDs.
• Use structured text for parsing data, recipes, or advanced math.
• Use SFC for clear states: Idle, Fill, Seal, Eject.

Real tip: Mix and match. Many systems blend ladder for safety interlocks and ST for math. That balance is a key skill in what is PLC Programming.

Source: instrumentationtools.com

Development Workflow and Best Practices

Treat what is PLC Programming like an engineering process, not a rush job.

• Define the process. Write the sequence of operations in plain words.
• Build an I/O list. Map every sensor and actuator with addresses and notes.
• Name tags well. Use short, clear, and consistent names. Example: MTR1_RunCmd.
• Design modular code. One module per device. Reuse templates and add AOIs or FBs.
• Plan safety early. E-stops, guards, safe torque off, and fault states.
• Simulate first. Use vendor simulators and test benches before site work.
• Use version control. Git or built-in tools save you when things break.
• Document as you go. Comments, rung titles, and change logs help the next shift.
• Test with a checklist. Walk through each I/O and each step with the operator.

Mistake to avoid: Pushing to site without a dry run. The fastest way to slip a deadline is to skip simulation. I learned that the hard way on a packaging cell. A two-hour sim saved two days on site.

Source: bin95.com

Real-World Examples and Use Cases

Seeing what is PLC Programming in action makes it click.

Conveyor with jam detect

• Inputs: photo eyes, motor overload.
• Logic: start sequence, jam timer, alarm, auto stop.
• Output: run motor, fault light, horn.

Tank level control with PID

• Inputs: level transmitter 4–20 mA.
• Logic: PID in FBD maintains setpoint.
• Outputs: control valve position, high-high trip.

Pick-and-place cell

• Inputs: limit switches, vacuum sensor.
• Logic: SFC handles states: Home, Pick, Move, Place.
• Outputs: servo moves, vacuum on, gripper open.

These small blocks stack into big lines. That is the heart of what is PLC Programming.

Source: controleng.com

Benefits and Limitations

Benefits

• Rock-solid and built for harsh sites.
• Deterministic timing for safe, fast control.
• Easy to maintain with clear ladder and tags.
• Huge vendor and integrator support.
• Long life cycles and spare parts.

Limitations

• Less compute power than PCs for heavy tasks.
• Vendor lock-in can limit portability.
• Licenses can be costly.
• Cyber risk if a network is wide open.
• Complex plants can get hard to scale.

Mitigate limits with modular code, secure networks, and smart platform choices. That balance is part of good judgment in what is PLC Programming.

Source: industrialautomationco.com

Safety, Compliance, and Cybersecurity

Safety first, always. For machines, design to standards like ISO 13849 or IEC 62061. Use safety PLCs for higher risk tasks. Plan e-stops, gate switches, light curtains, and safe states. Test every interlock with a checklist.

Cybersecurity matters too. Follow IEC 62443 and NIST guidance. Use network zones and firewalls. Turn off unused services. Set user roles and strong passwords. Patch engineering laptops. Log changes. If it can connect, it can be hacked.

Source: control.com

Getting Started with What is PLC Programming: Tools and Learning Path

You can start small and fast.

• Pick a platform. Siemens TIA Portal, Rockwell Studio 5000, CODESYS, Beckhoff TwinCAT, WAGO.
• Get a starter kit or simulator. PLCsim, Logix Emulate, CODESYS SoftPLC, Factory I/O.
• Learn the basics. Digital I/O, timers, counters, task scan.
• Build mini projects. Motor start/stop, alarm latch, traffic light, tank fill.
• Study the standard. IEC 61131-3 makes ideas portable.
• Join communities. Vendor forums, user groups, and local meetups.

A 30-day plan

• Week 1: Basic ladder, I/O, and HMI tags.
• Week 2: Timers, counters, and fault latches.
• Week 3: PIDs and messaging to a drive.
• Week 4: Build a full demo with an HMI and a recipe.

By month’s end, you will not just know what is PLC Programming. You will be doing it.

Related Concepts: PACs, DCS, SCADA, and IIoT

PLC vs PAC

• PACs feel like PLCs but add PC-like power. Great for complex data and motion.

PLC vs DCS

• DCS suits large process plants with many loops and high uptime needs. PLCs shine in machines and lines.

SCADA and HMI

• SCADA collects data and alarms across many PLCs. An HMI is a local screen for one machine.

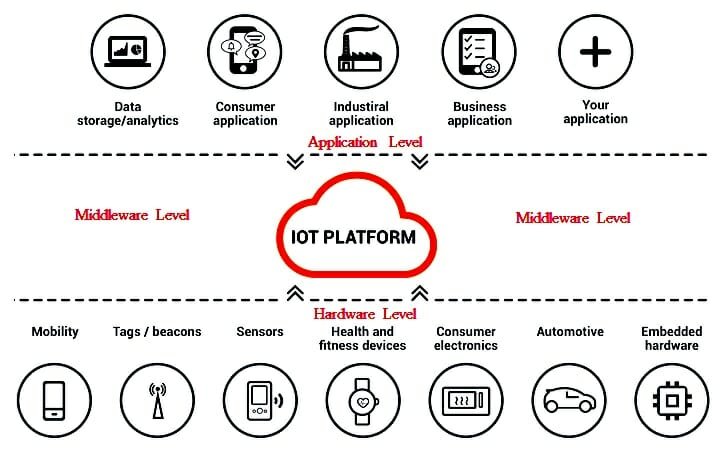

IIoT and edge

• Gateways push data to the cloud for dashboards and AI. Keep control local and secure.

Knowing these helps you frame what is PLC Programming inside the bigger plant stack.

Frequently Asked Questions of What is PLC Programming

Is a PLC the same as a microcontroller?

No. A PLC is an industrial controller with hardened I/O, real-time firmware, and tools. A microcontroller is a chip you must wrap with hardware and code.

Which PLC brand should I learn first?

Pick one common in your region or industry. Siemens and Rockwell are safe bets, while CODESYS-based brands offer low-cost practice.

Can I learn PLCs without hardware?

Yes. Many vendors offer free or trial simulators. You can build and test real logic on a laptop.

What language should I start with?

Start with ladder diagram. It is easy to read and great for troubleshooting, then add function blocks and structured text.

How fast is a typical PLC?

Many systems run scans from 1 to 20 ms. Critical tasks can run even faster with event or periodic tasks.

Do I need math for PLC work?

Basic math helps. You need logic, scaling for analog signals, and simple PID tuning.

Is PLC programming a good career?

Yes. It pays well, spans many industries, and rewards problem solvers who like hands-on work.

Conclusion

What is PLC Programming? It is the craft of turning sensor signals and machine steps into safe, steady action. You now know the scan cycle, key tools, top languages, and real examples. You also know the limits, the risks, and the path to get started.

Take one small step this week. Install a simulator, build a motor start, and add an alarm latch. Then grow. If this helped, subscribe for more guides, ask a question below, or share your own PLC win.
